Orics Model S-30 Dual Lane Automatic Cup/Tub/Bowl Filling Sealing Labeling System Complete

Orics Model S-30 Dual Lane Automatic Cup/Tub/Bowl Filling Sealing Labeling System Complete Line

This system was last used in the food industry used

on snacks. This is a complete line.

Tubs last ran on this system are 4 inch X 4 inch

clam style tubs. PDF attached of current container.

System was purchased new in 2010 at a cost of over

300k not including a couple conveyors and the labelers.

https://www.youtube.com/watch?v=NGteDnshzMs

Specs Below:

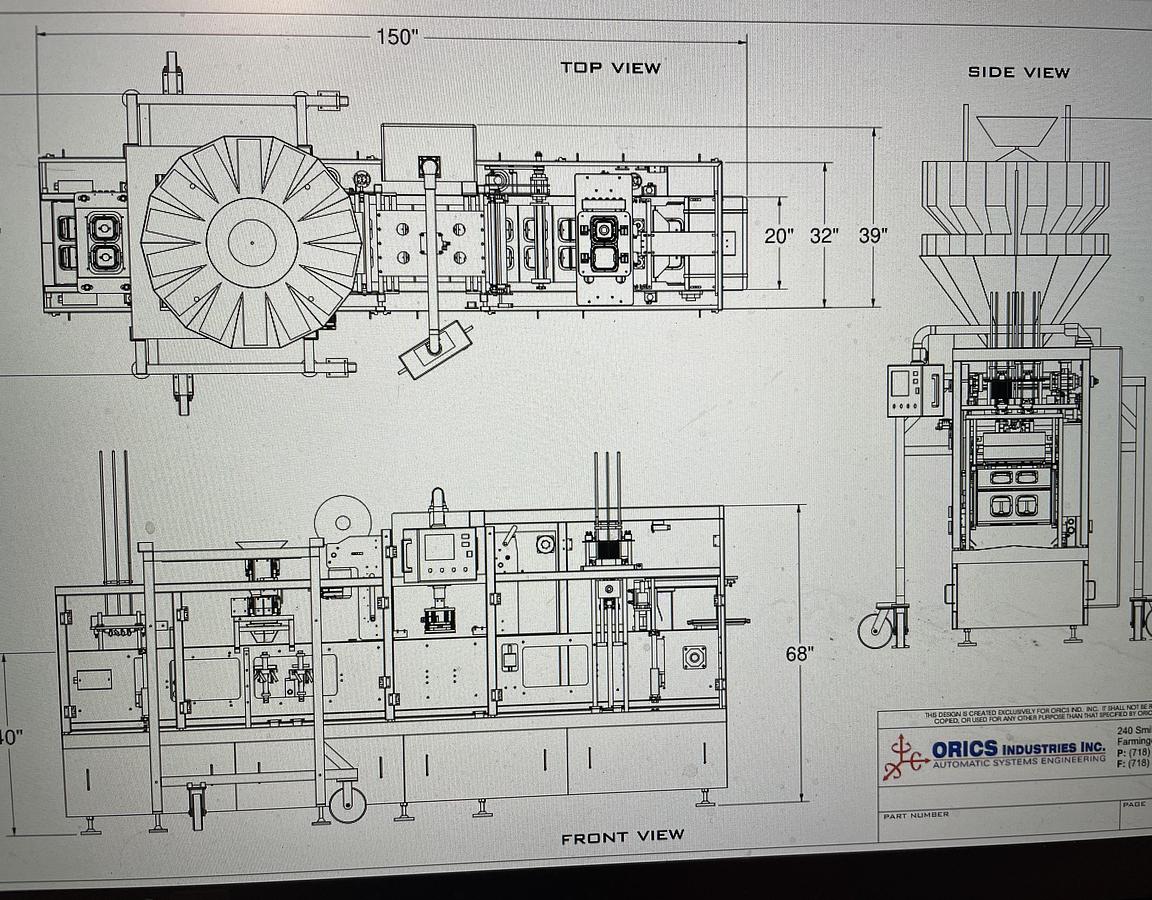

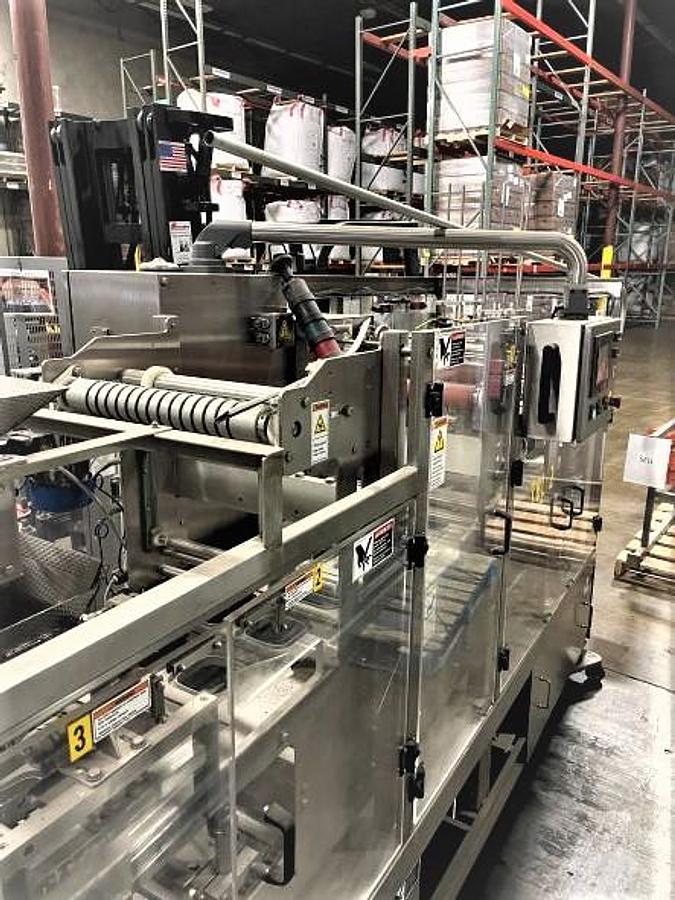

Orics Model S-30

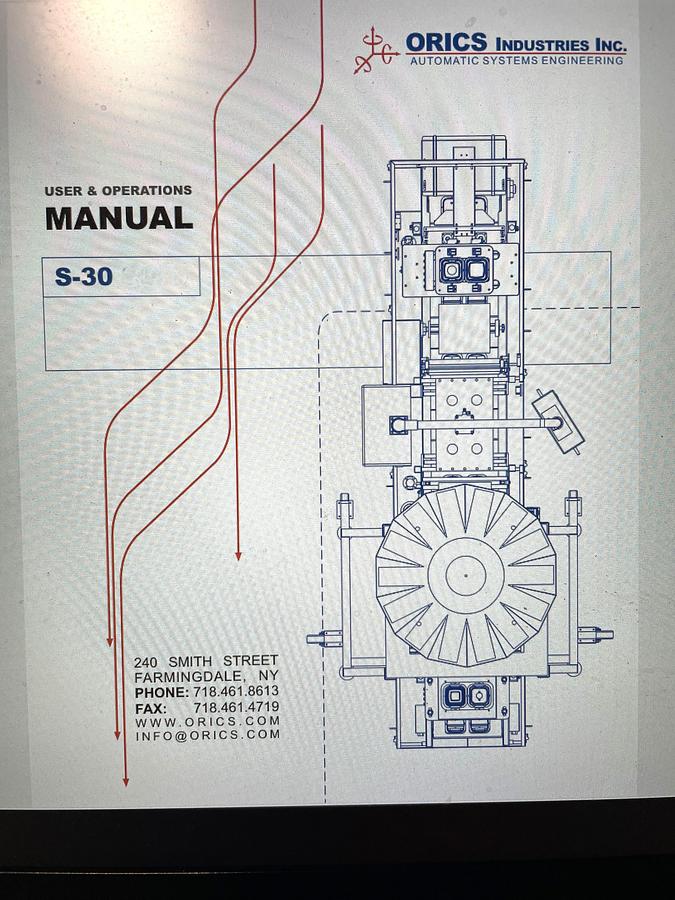

We have the complete manuals for all the items in this line.

Mfg 2010

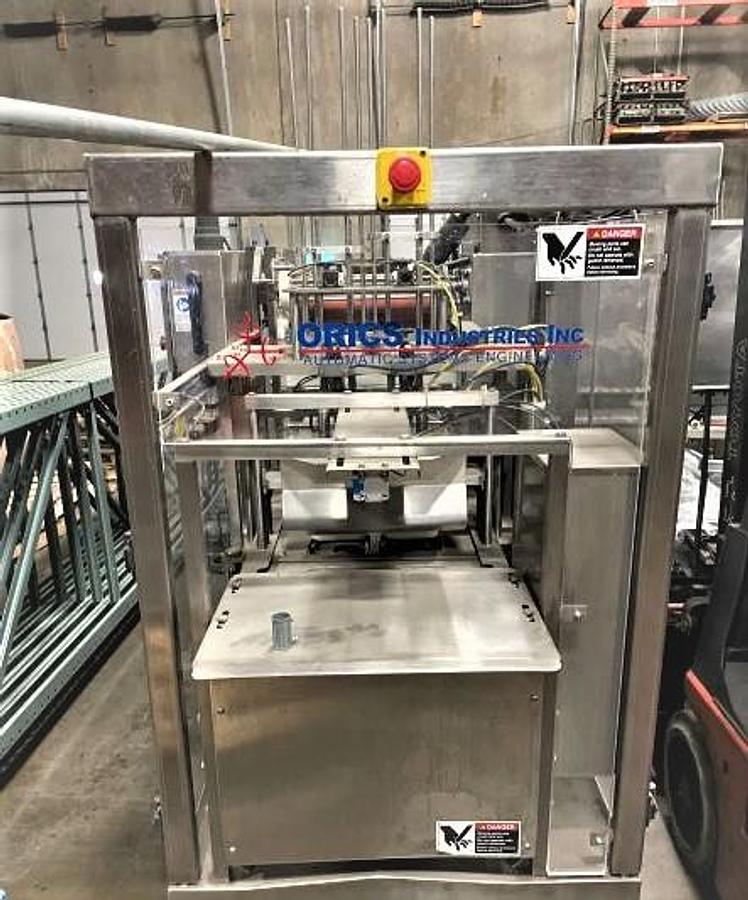

The S-30 is linear-motion heat sealing machines. AC Servo drives.

The S-30 / S-50 Series is designed for medium to high-speed applications.

Operating at up to 30 cycles per minute. 3000 containers per hour.

With the ability to run in multiple lanes, single index, or in a single lane.

With multiple centers indexing on each cycle, these systems are capable of achieving

throughput in excess of 500 containers per minute, depending on the application.

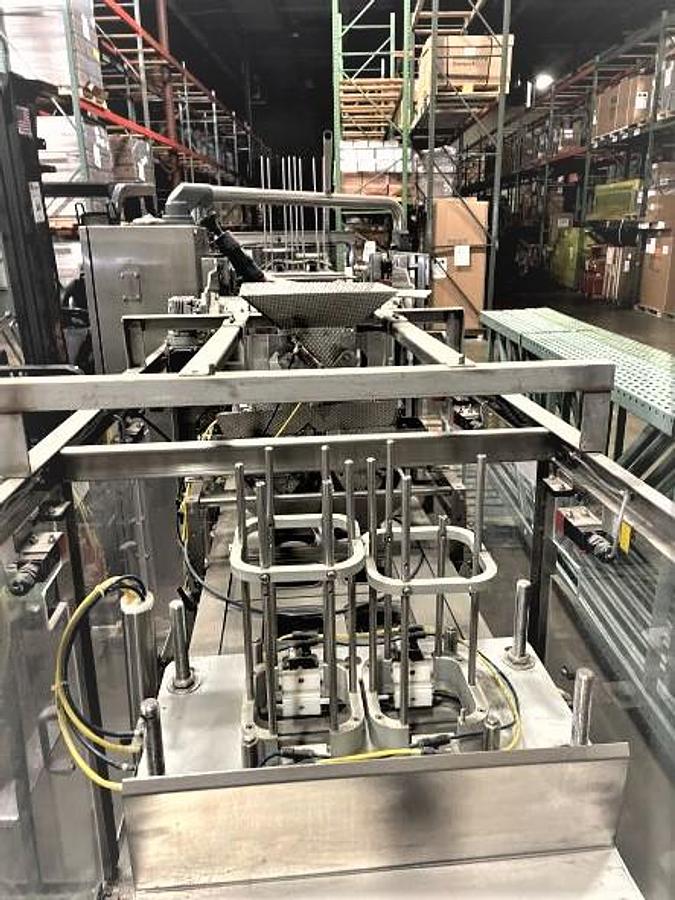

Cups or trays are placed manually or, automatically denested, into the carriers. At each index containers can be filled, sealed and automatically discharged. Film is cut in between each container, leaving absolutely no waste of film. The unique design of the S-30 Eco-Cut® systems by ORICS eliminates this film waste and have proven to be a perfect fit for leading processors in the food packaging industry. ORICS’ Eco-Cut® film feeder technology cuts the film in between each container, leaving no wasted film and potentially saving the facility $35,000, or more, per year in material costs alone. Further savings include reduced labor costs and downtime by eliminating the need to handle and discard excess film.

What’s more, Eco-Cut® also lessens a producer’s carbon footprint and environmental impact by virtually eliminating discarded material.

By reducing the material cost for the ongoing purchase of lidding material (film), an Eco-Cut® system practically pays for itself; turning environmentally-conscious eco-friendly design into verifiable savings.

Die-cutting of the film and placement of pre-cut lidstock are also options.

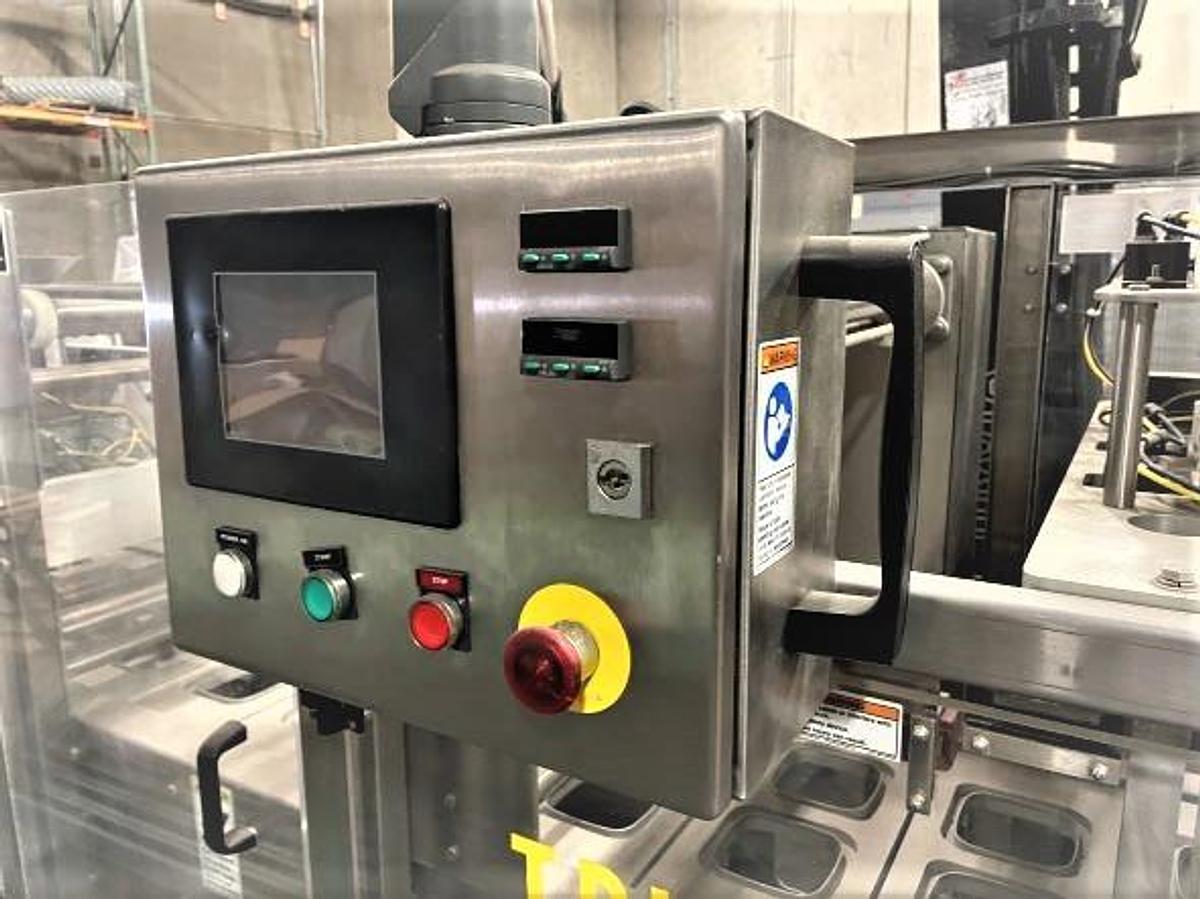

Equipped with a programmable logic controller (PLC) and a high-speed optical encoder, the S-30-DX can be configured for a variety of production applications. All of the machine’s functions are controlled from a digital touch screen with a state-of-the-art, menu-driven interface.

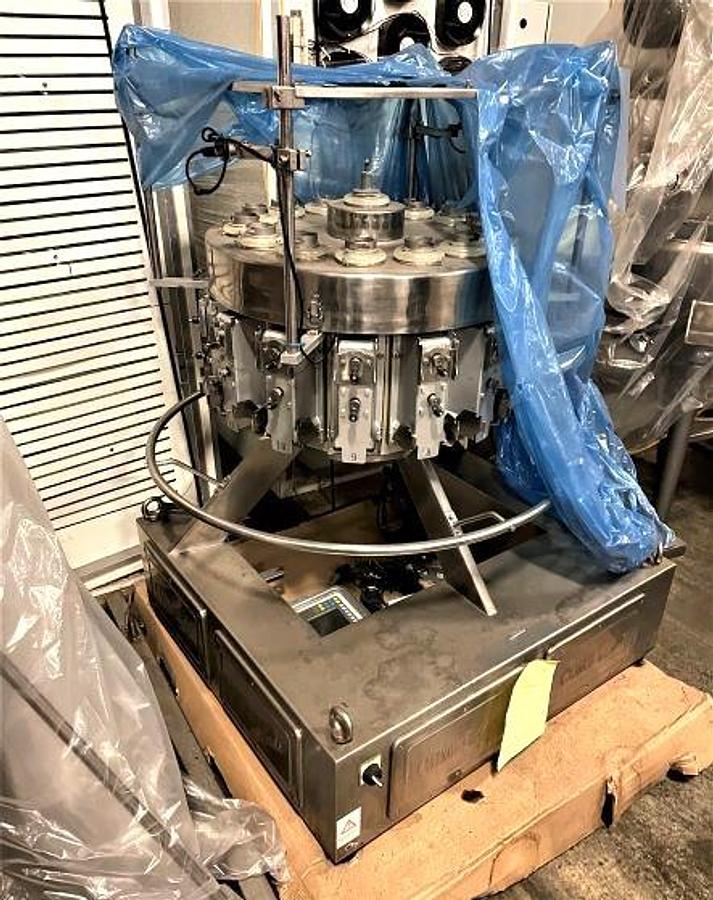

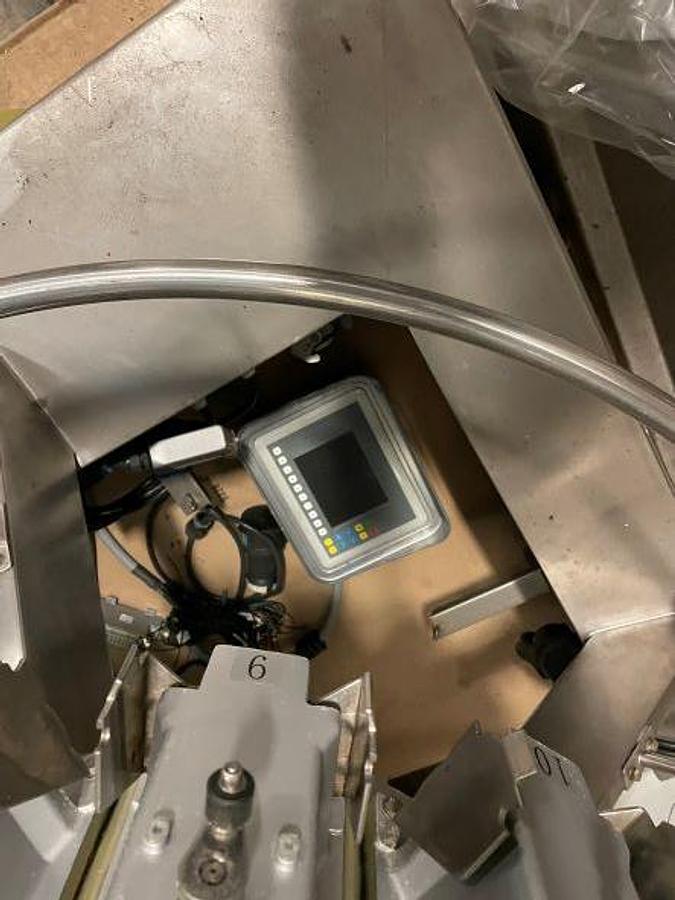

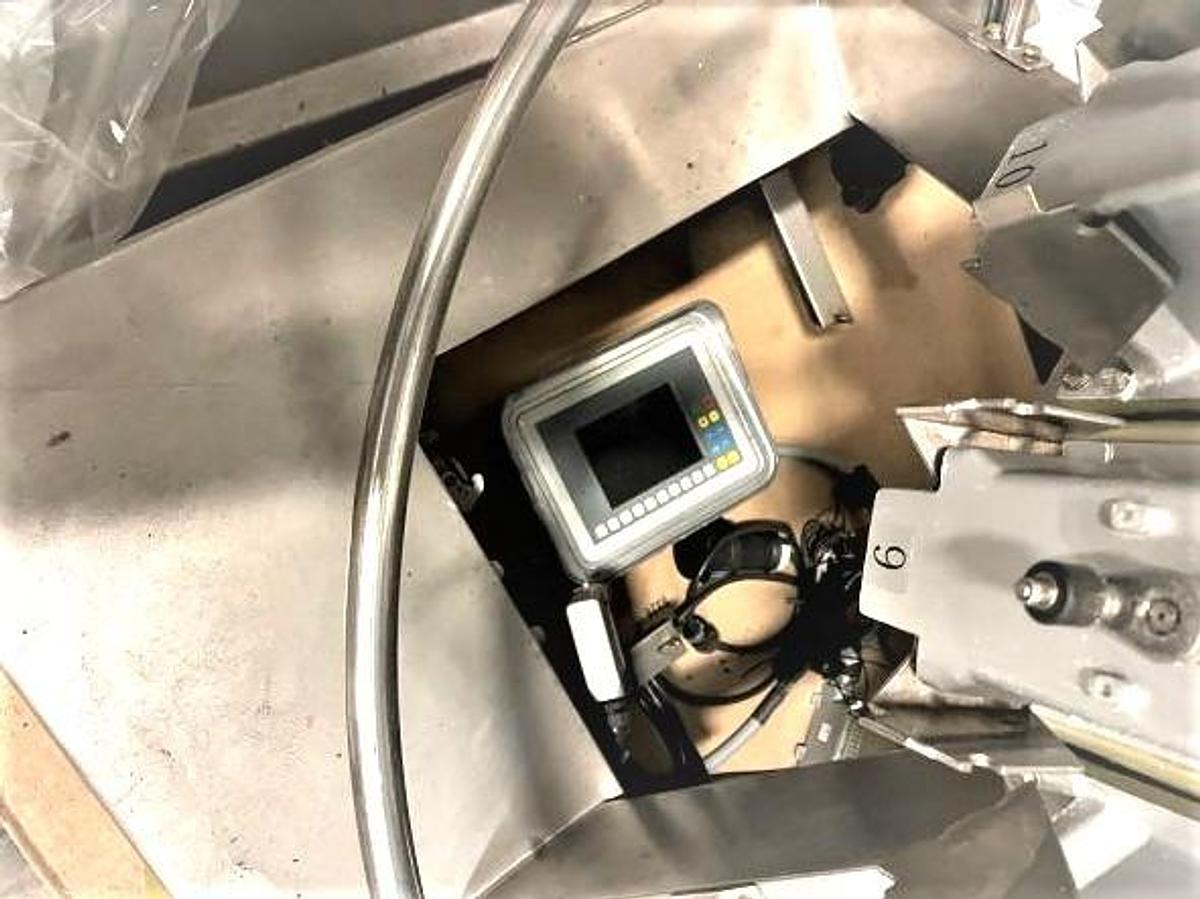

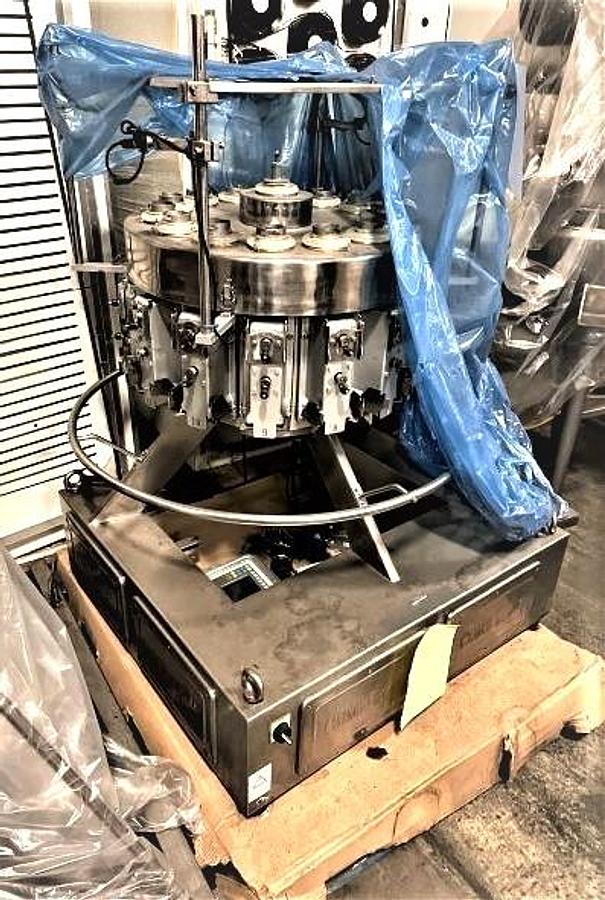

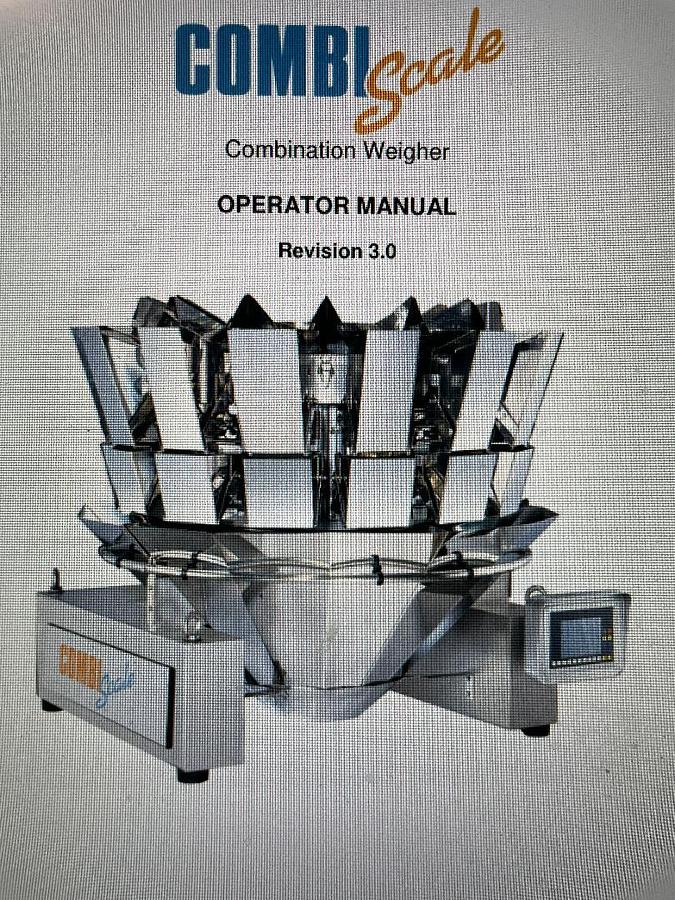

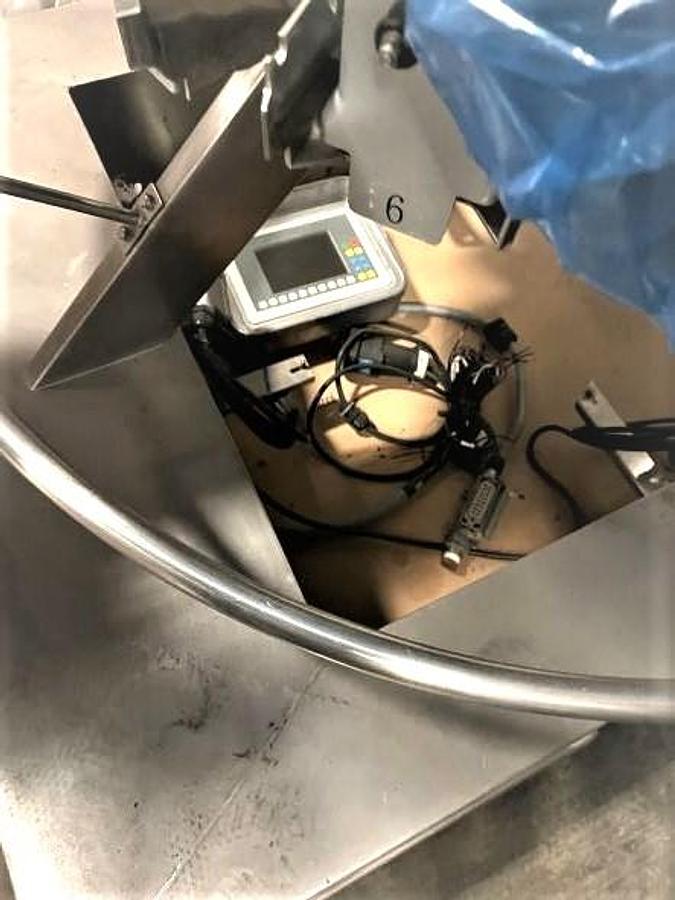

Combi Scale 14 head rotary scale

Model 14H, 1.3L, D.P 14 head, samll bucket, Max speed 130upm, weight range 14g to 3.2kg

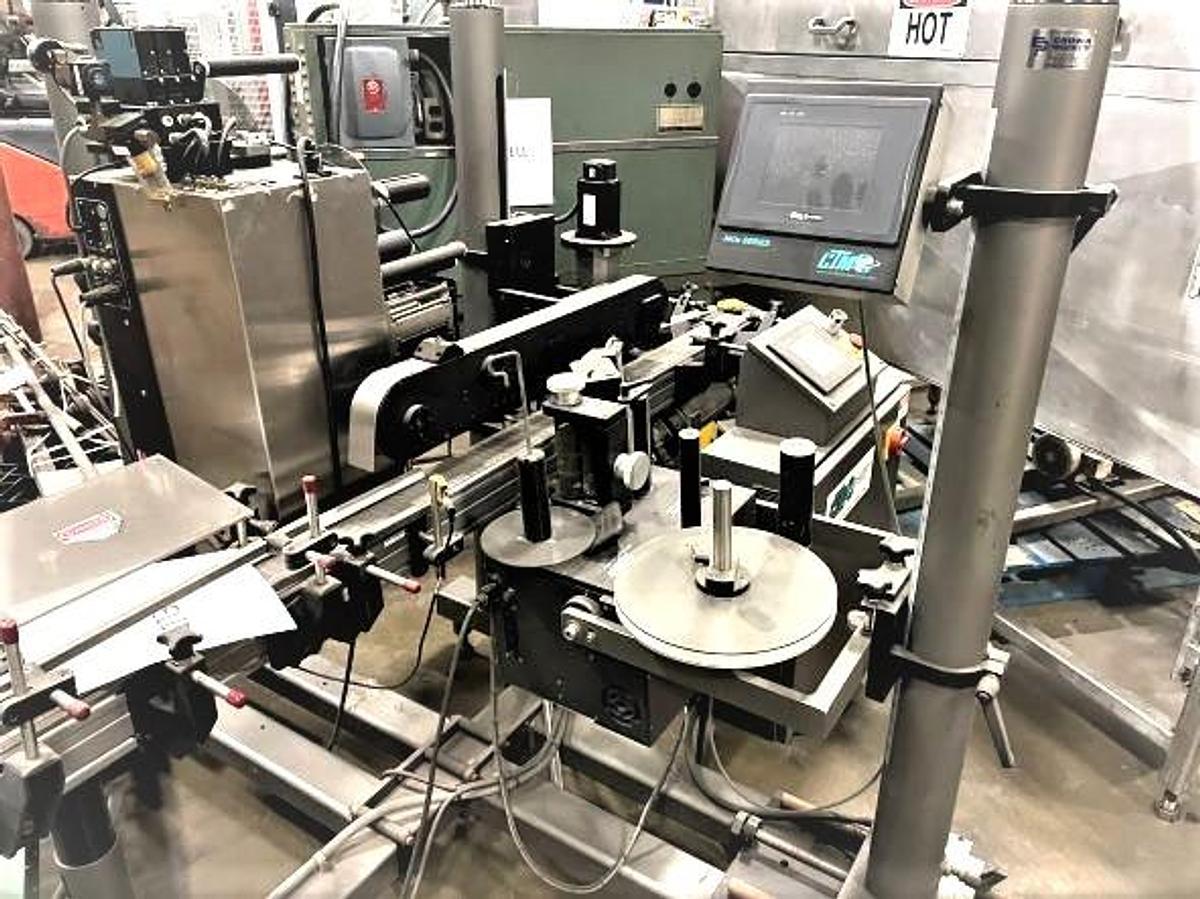

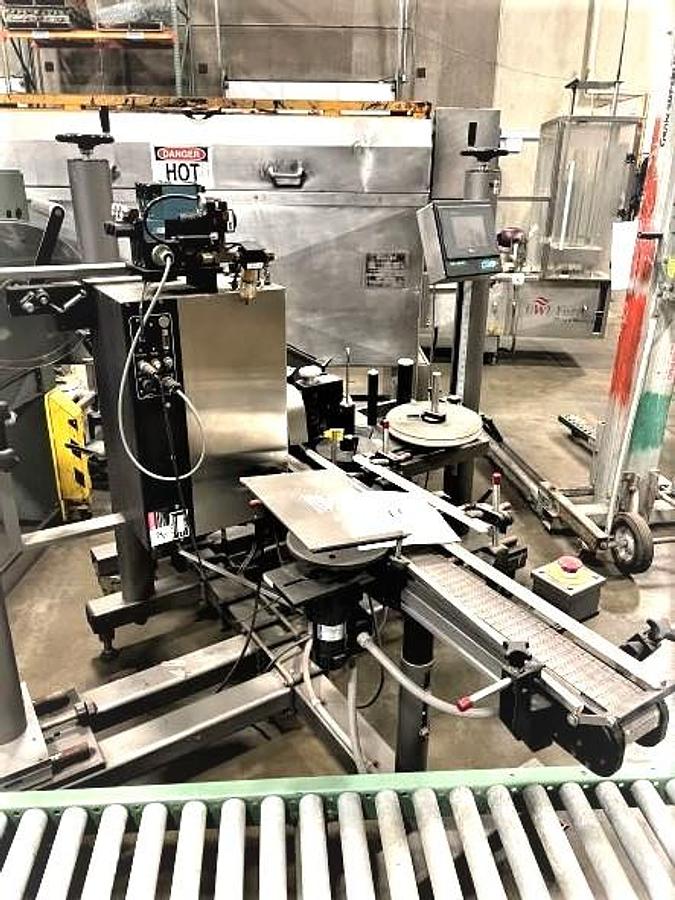

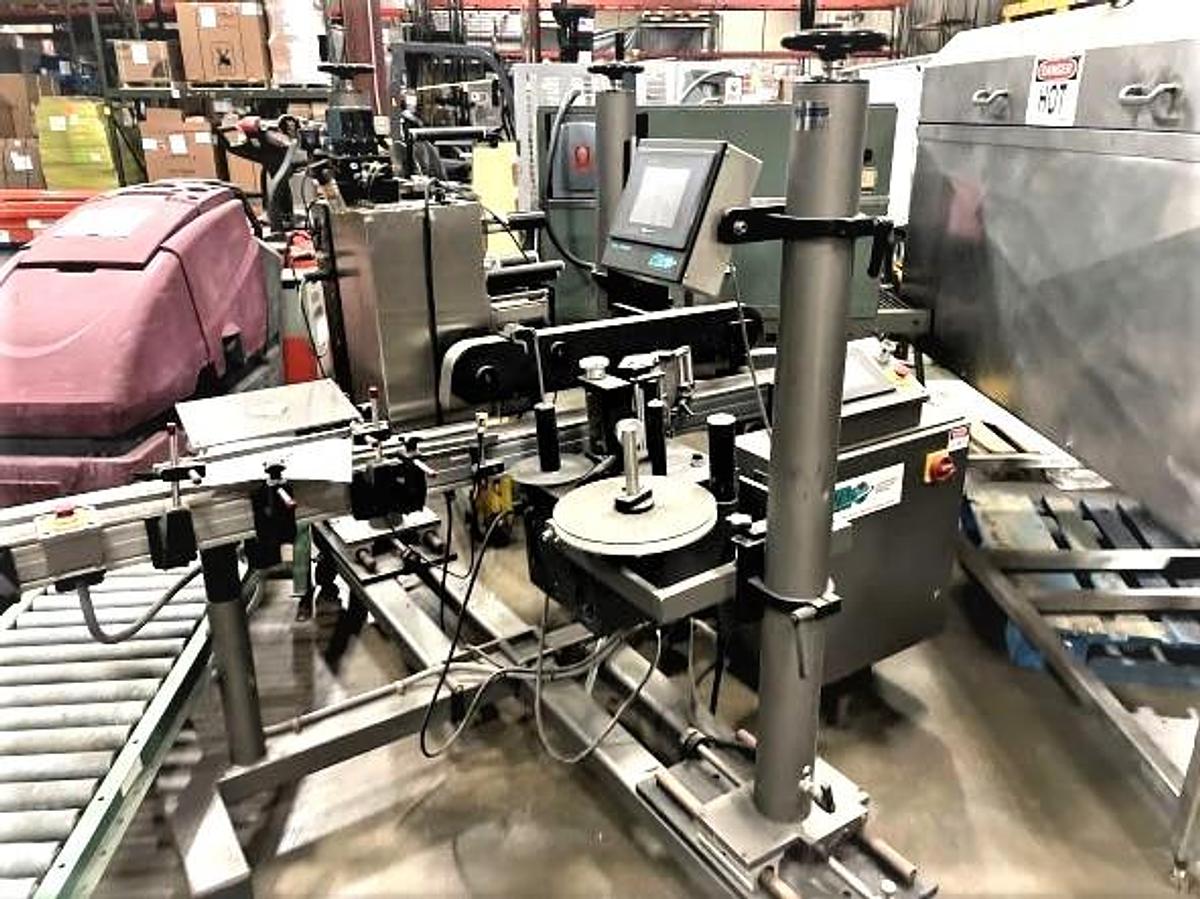

CTM Labeling System Front / Back labeling system designed to label a square, tapered, plastic tub. System consists of a mat-top conveyor with a top trap, metering wheel, a 360a series merge applicator mounted reels up, and a model 3600PA printer applicator mounted nose down for front and back label applications. 50 ppm.

We will not split up the line. This entire line will need space

for a full truck load via flatbed or 53ft van. Will ship overseas

via container.

Please inquire for shipping rates.

Should you need any additional information, please let us know.
